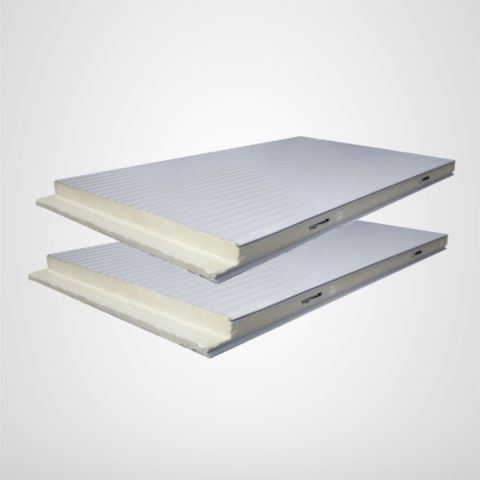

Our standard production is 10 mm thick Plywood on the upper surface and 40 (+/-2) density polyurethane injected interlocking panels between galvanized sheet metal on the lower surface. Corrugated floor panels are the same as wall/ceiling panels, 7 different thicknesses. Corrugated panels have a load bearing capacity of 2000 kg/m2, and optionally, non-slip CrNi or 200 micron PVC coated sheet on plywood can be used on the surface.
|
Specifications:
|
Panel width (cm)
|
30 - 40 - 50 - 111
|
|
Panel Thickness (mm)
|
50 - 60 - 80 - 100 - 120 - 150 - 180 - 200
|
|
Panel Density
|
40±2 kg/m³
|
|
Lock Mechanism
|
Yes
|
|
External Sheet Surface Layering Materials
|
Polyester - PVC - CrNi
|
|
Colour
|
RAL 9002
|
|
Pattern
|
Corrugated - Plain
|
|
Insulator
|
Polyurethane
|
|
Sheet thickness (mm)
|
0,50 mm
|
|
